InnoQuant
A New Standard in Fluorescence Slide Imaging
Beyond Widefield. Without Confocal Constraints.
InnoQuant is the only fluorescence slide scanner with confocal capabilities. It is designed for fast and quantitative imaging of full tissue sections.
InnoQuant combines single-pass scanning, simultaneous 4-channel acquisition, and PMT-based detection to deliver sharp, reproducible fluorescence data — without stitching, shading correction, or post-processing. With dynamic focusing, TIFF multi-resolution output, and full automation, InnoQuant bridges the gap between widefield and confocal microscopy, offering unmatched speed and consistency for multiplexed tissue analysis.
Whether you’re working in neuroscience, oncology, or translational research, InnoQuant brings you the image quality and data integrity needed to scale up your whole-slide fluorescence imaging — reliably and efficiently.

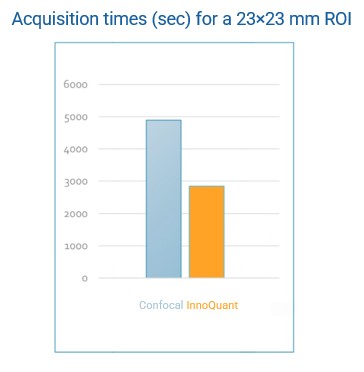

Superior Quality / Time ratio

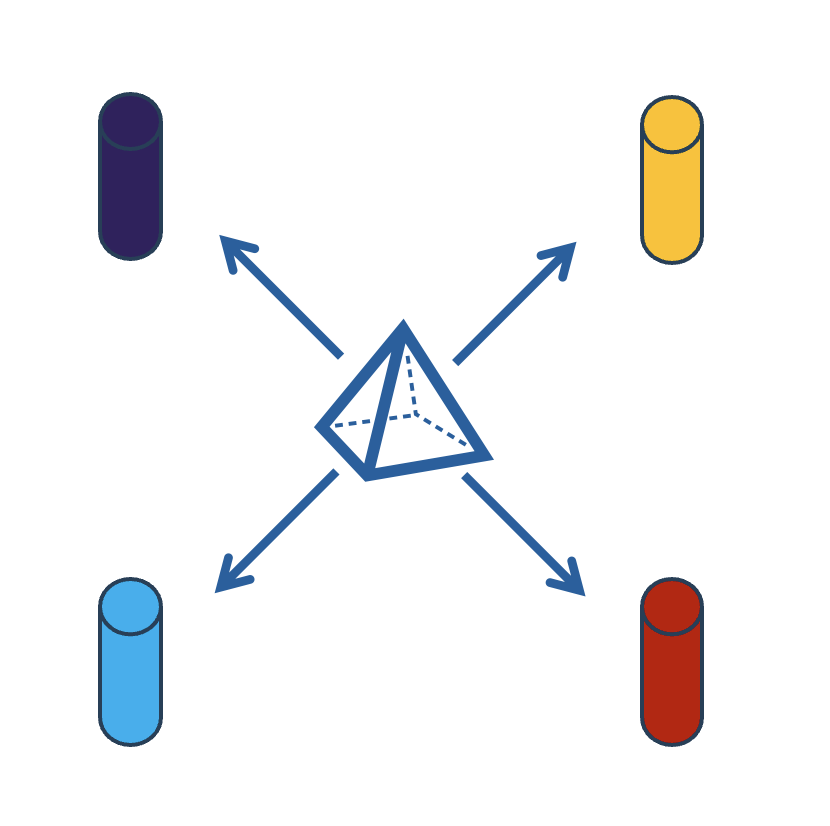

4 colors simultaneous multiplexing

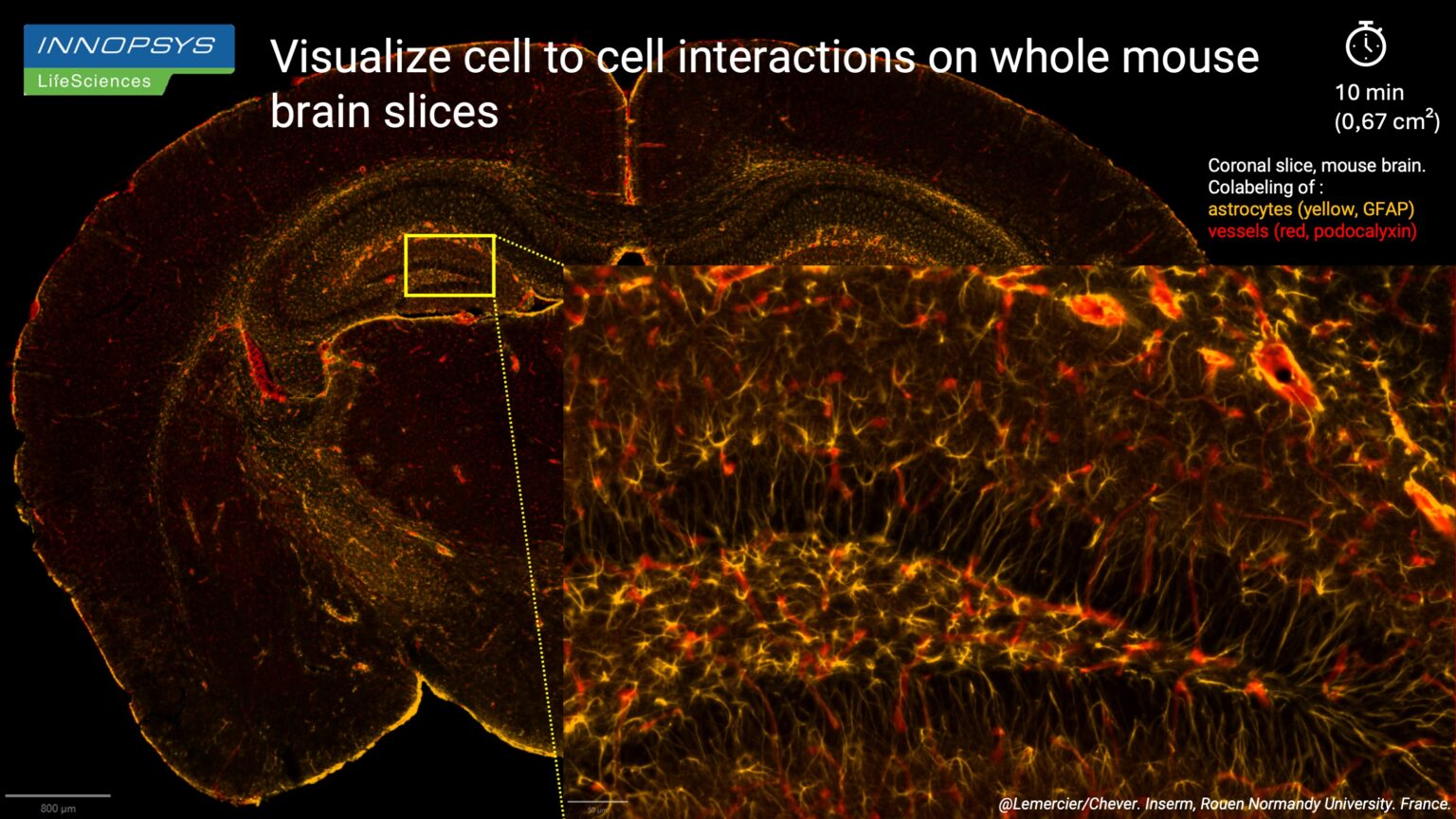

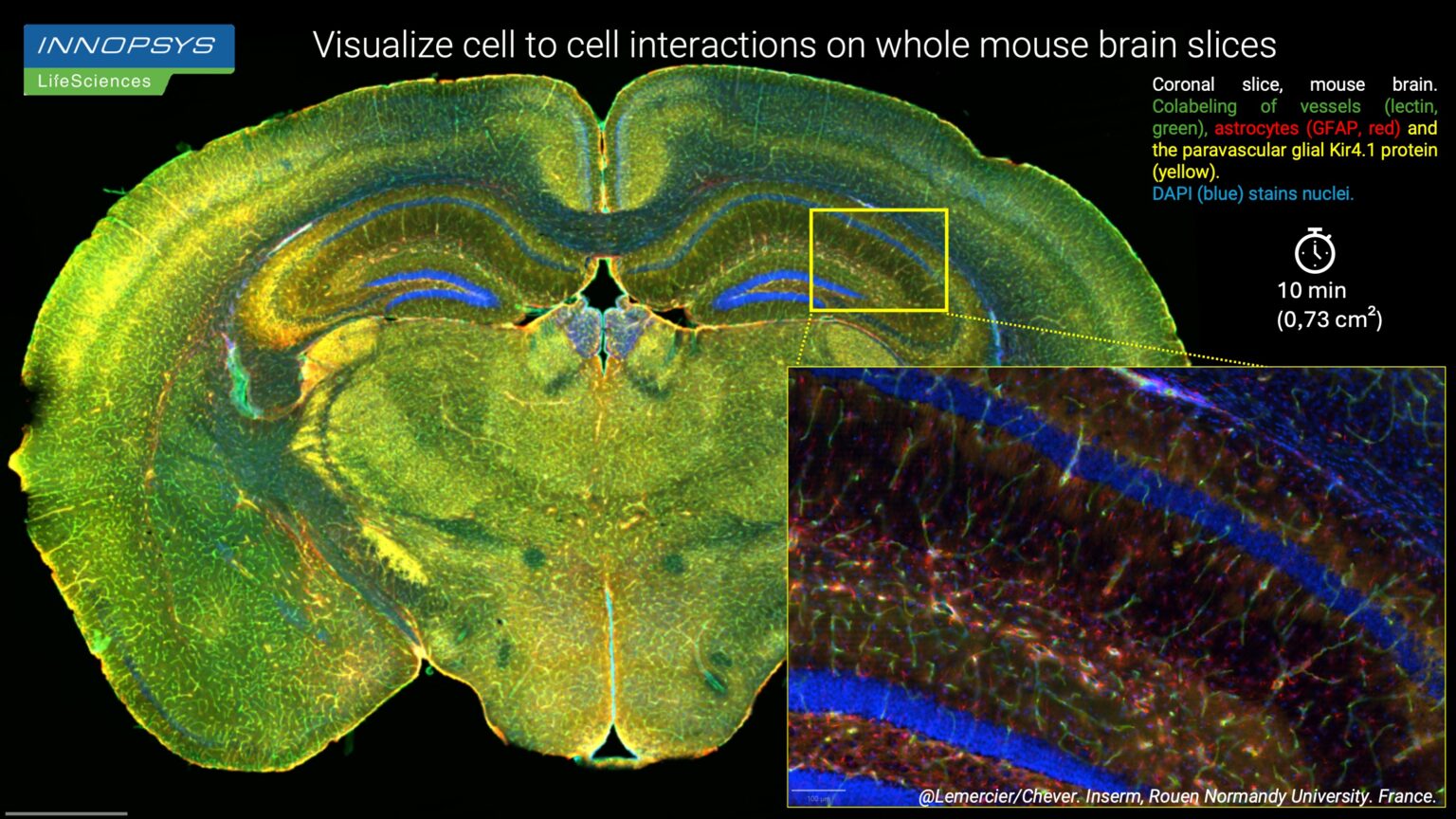

Only 10 minutes for a mouse brain coronal section
Focus and saving included

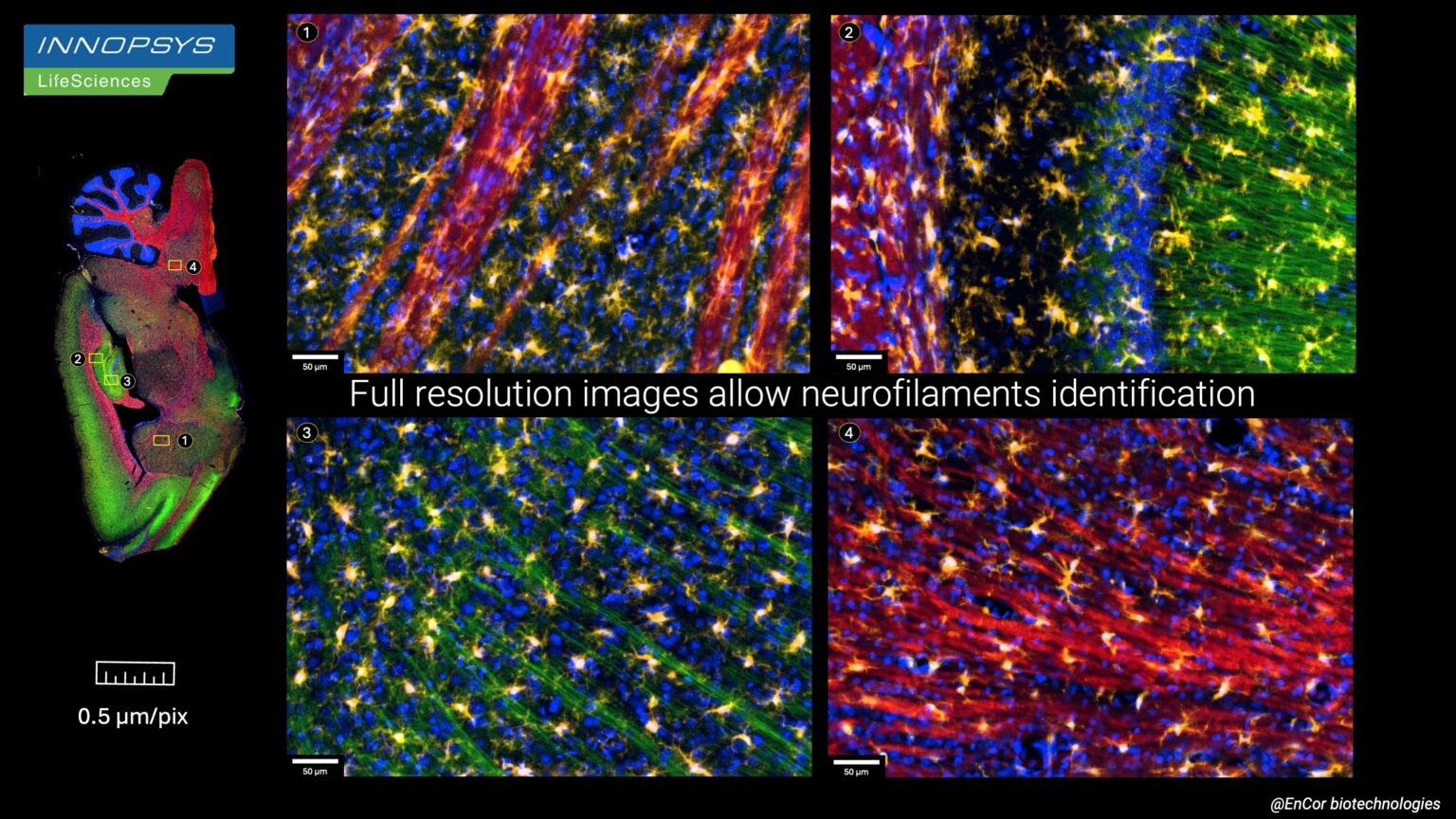

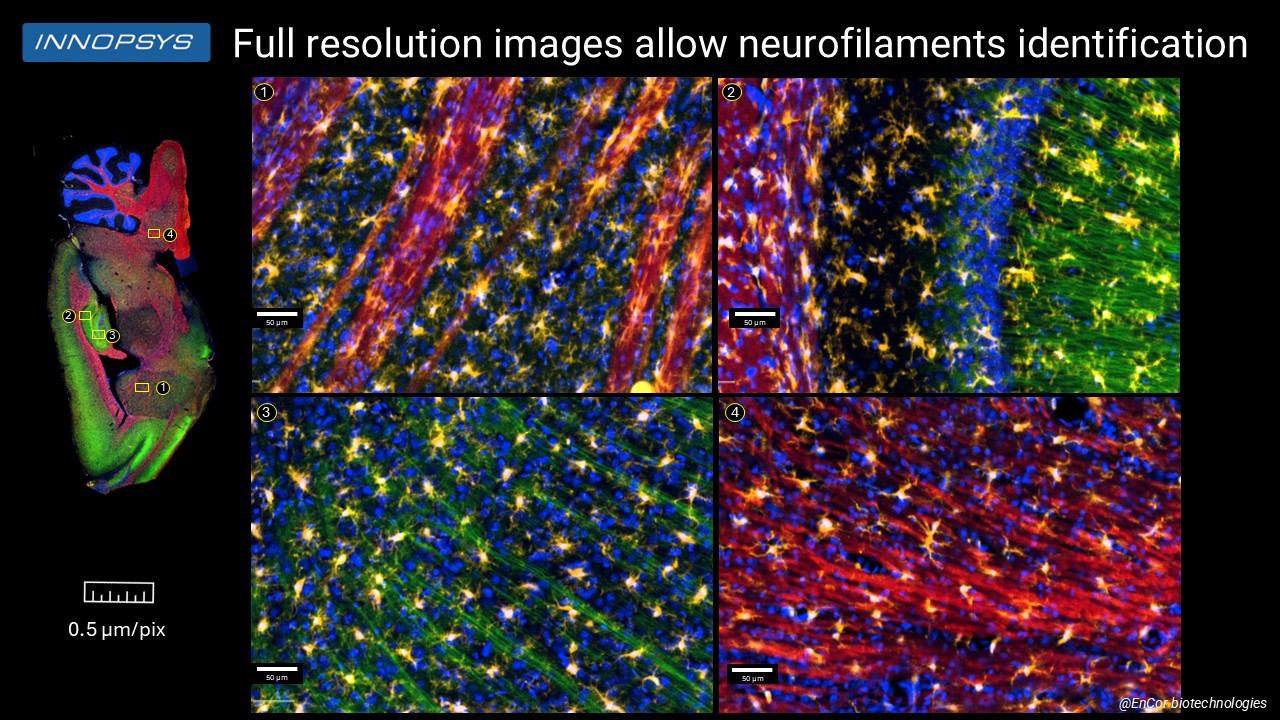

0.5 µm/pixel
0.7 µm (lateral resolution)
20x equiv. magnification
4-Lasers Excitation
Synchronous detection (4 parallel tracks)
- 375 nm
- 488 nm
- 561 nm
- 640 nm

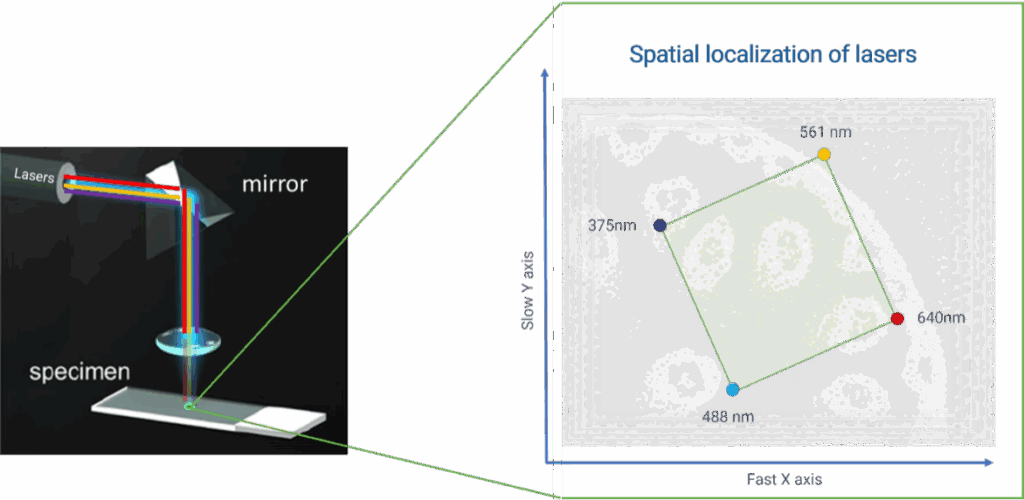

Spatial demultiplexing
Clean separation between excitation spots

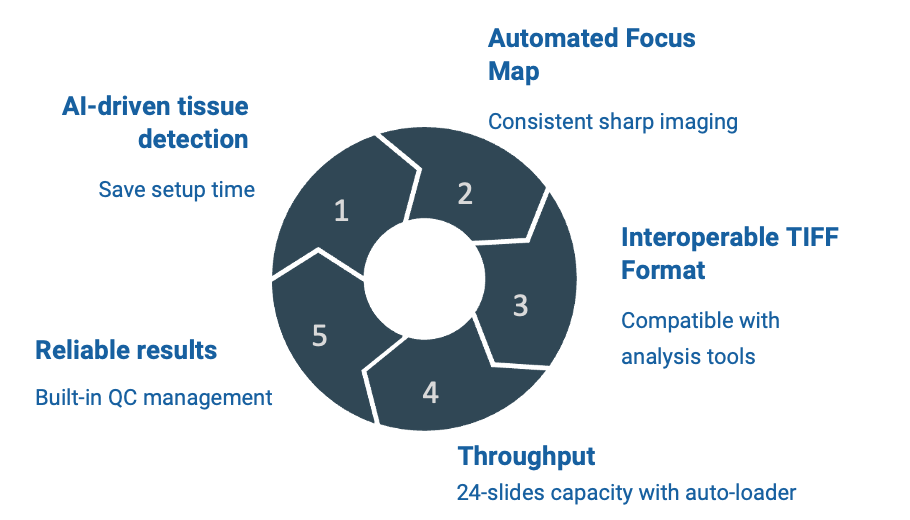

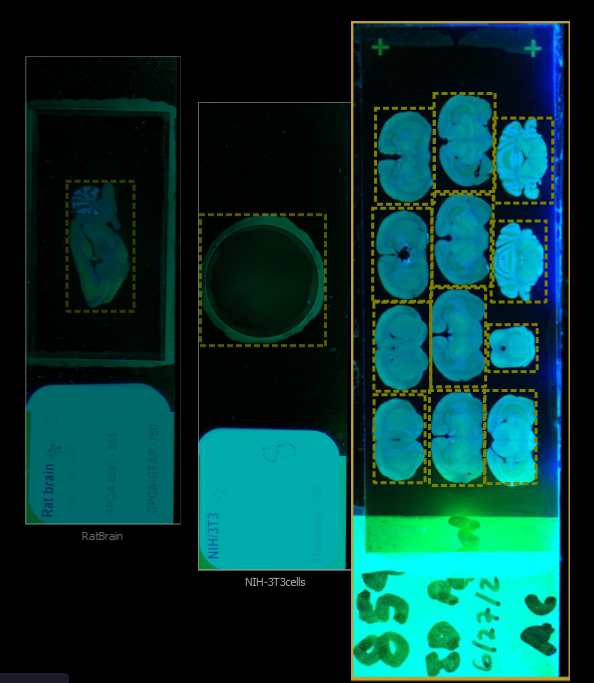

How InnoQuant Fits Automation Expectations

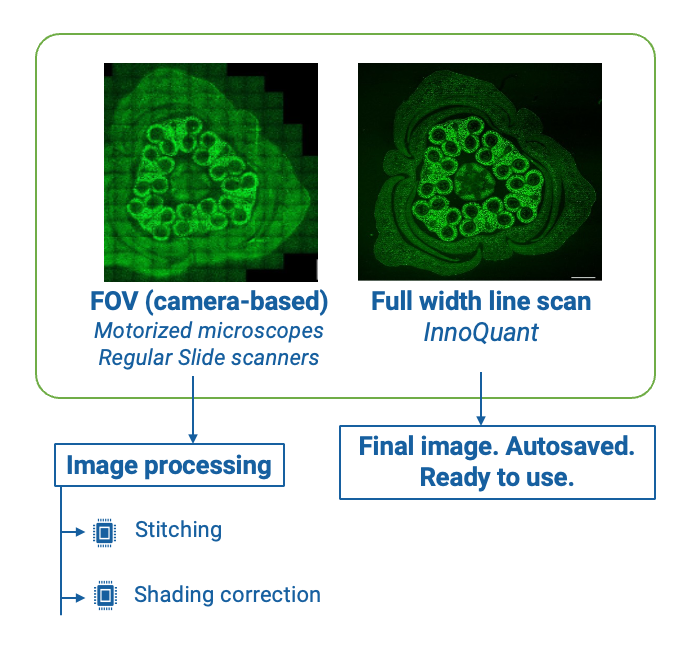

No fields of view - 98% uniformity across the full slide
20x magnification
Adjustable pixel size
– 0.5 NA
– 0.7 µm lateral resolution
– 3 µm axial resolution
Fluorescence instrument
No exposure time
Simultaneous 4-color imaging
Scanning time independant of staining intensities!

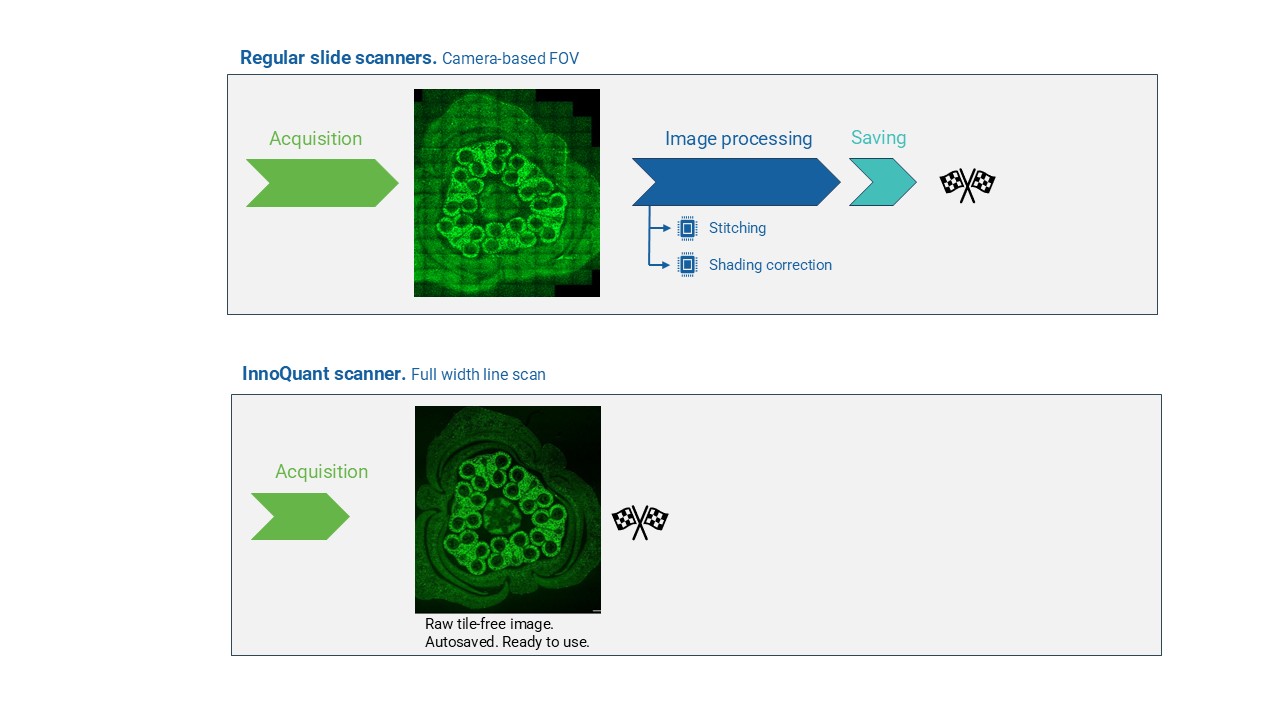

Tile free
Quantitative raw data, without artifacts
Line-by-line laser scanning
No filed of view
16-bit digitization
2D scanner
With automated focus map
Dynamic by-content focus for 2D images

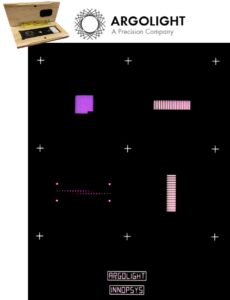

Ensuring Reproducible Results: InnoQuant with Argolight Metrology Slide
In scientific imaging, reproducibility and precision are everything. To generate highly quantitative and consistent data, you need complete confidence in your instrument.
That’s where InnoQuant shines — delivering exceptional field uniformity and stable laser excitation for reliable fluorescence slide scanning. But how can you ensure consistent results over time, or between different InnoQuant units?
To address this, we’ve partnered with Argolight, a leader in precision metrology. Argolight manufactures specialized metrology slides designed to monitor and maintain the performance of imaging systems.
Each InnoQuant comes equipped with an Argolight metrology slide. With a quick “Check Scanner” procedure, you can verify in just 10 minutes that your InnoQuant is performing exactly as it did when it left our factory — ensuring long-term reliability and reproducibility.

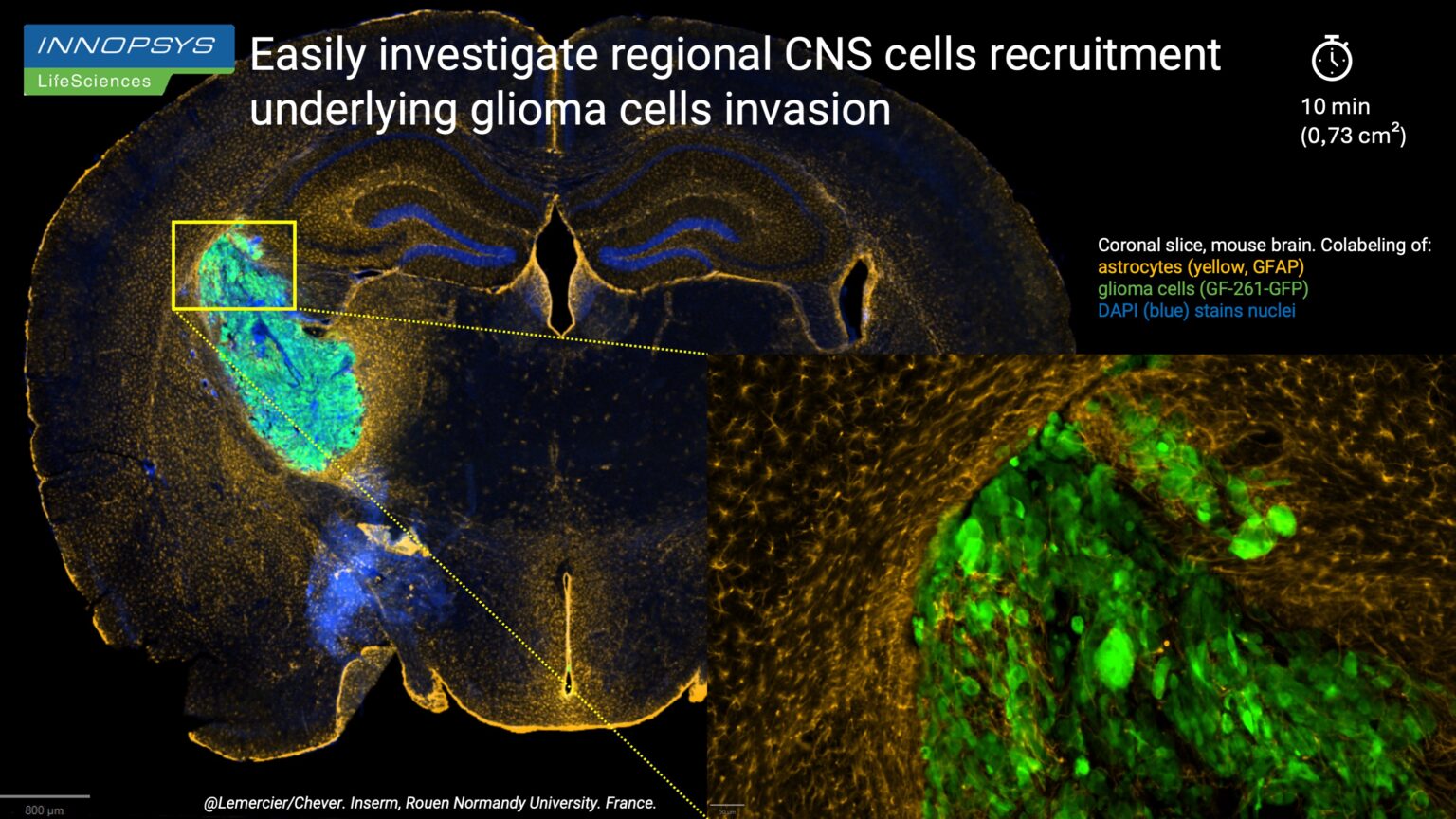

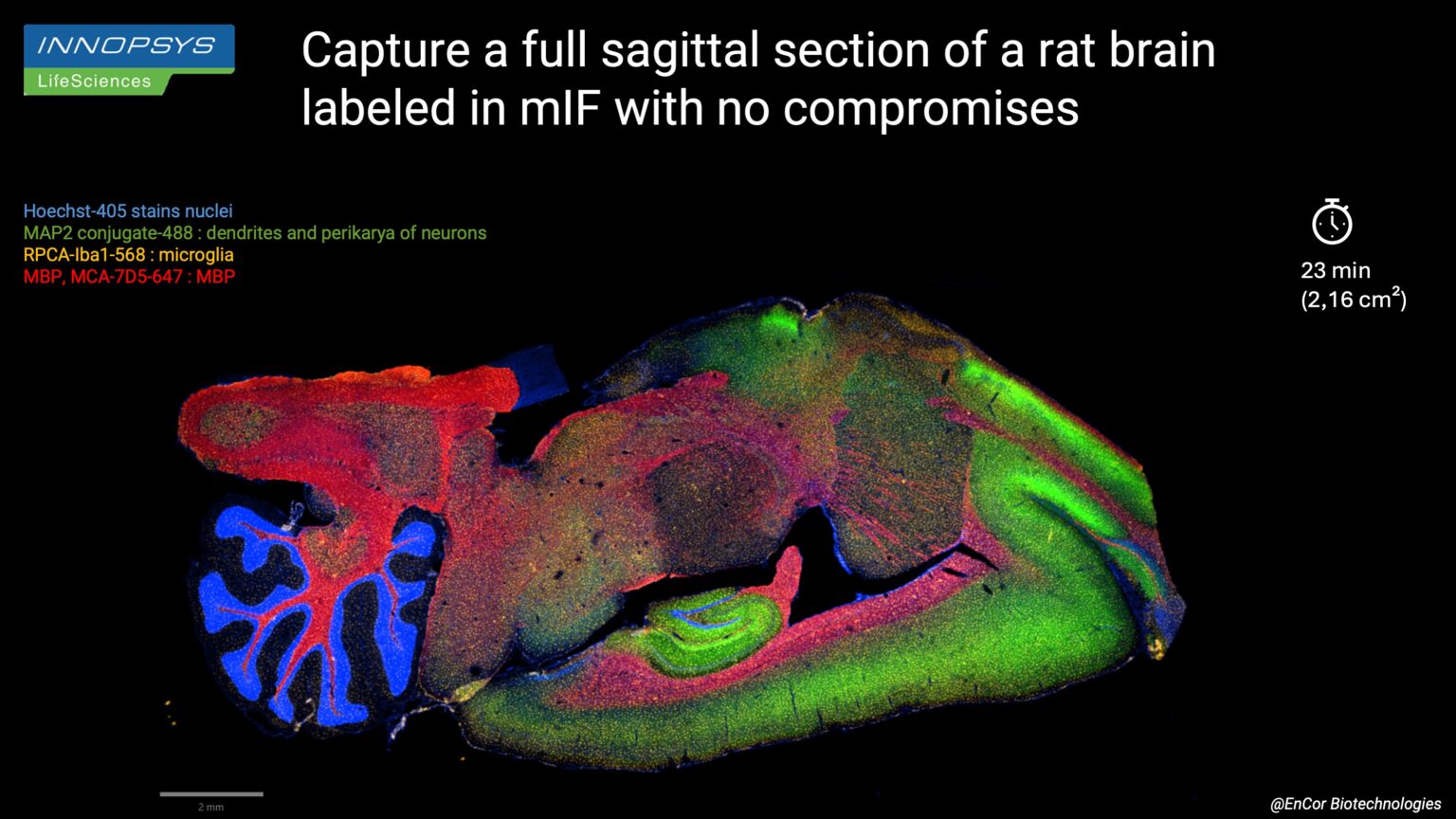

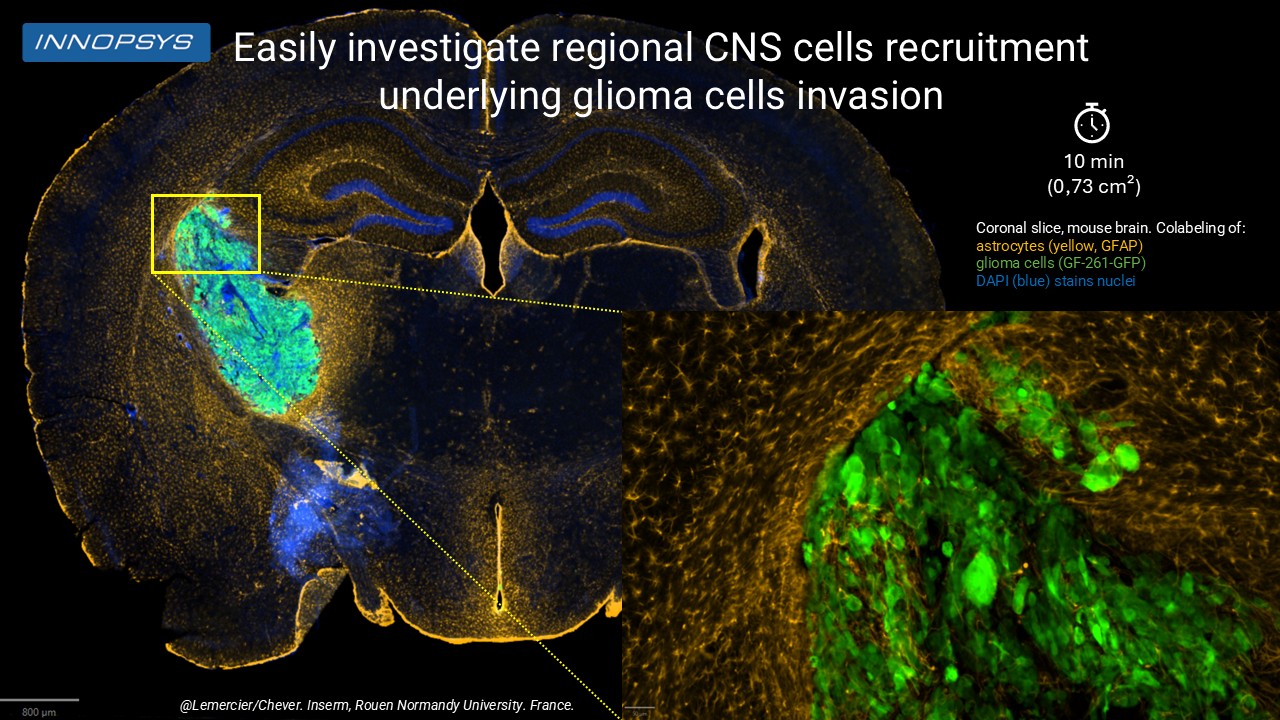

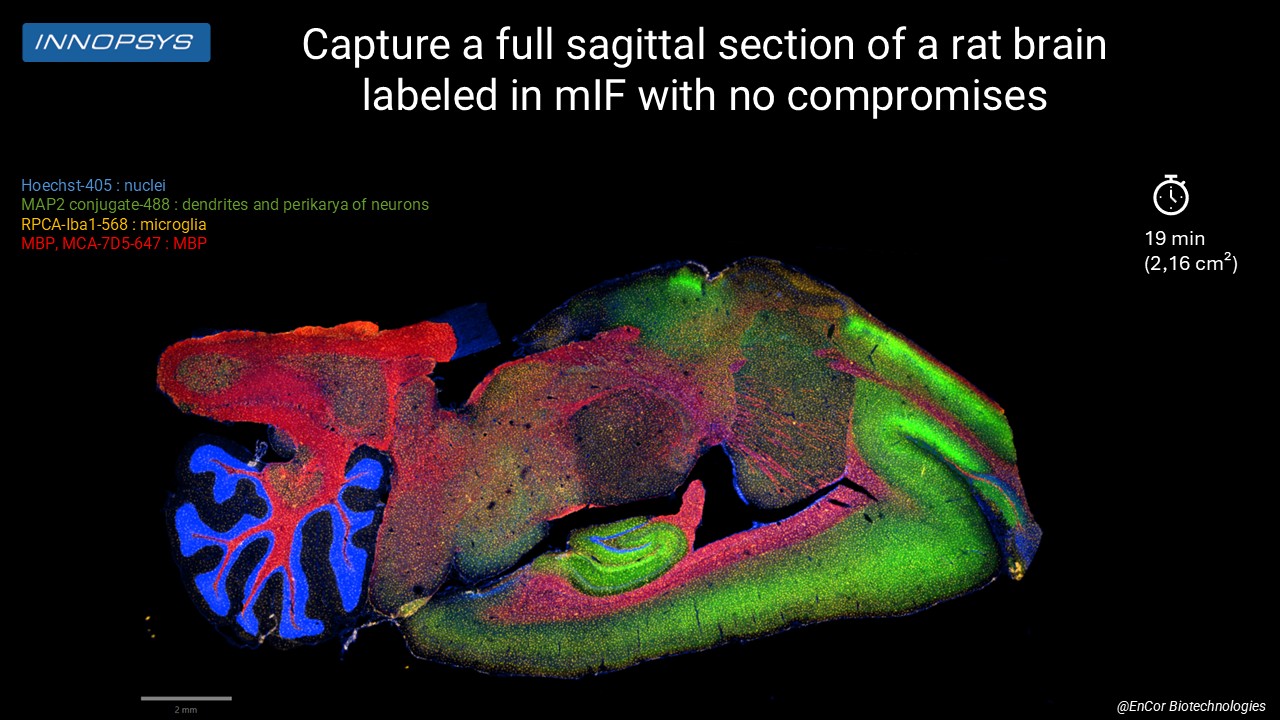

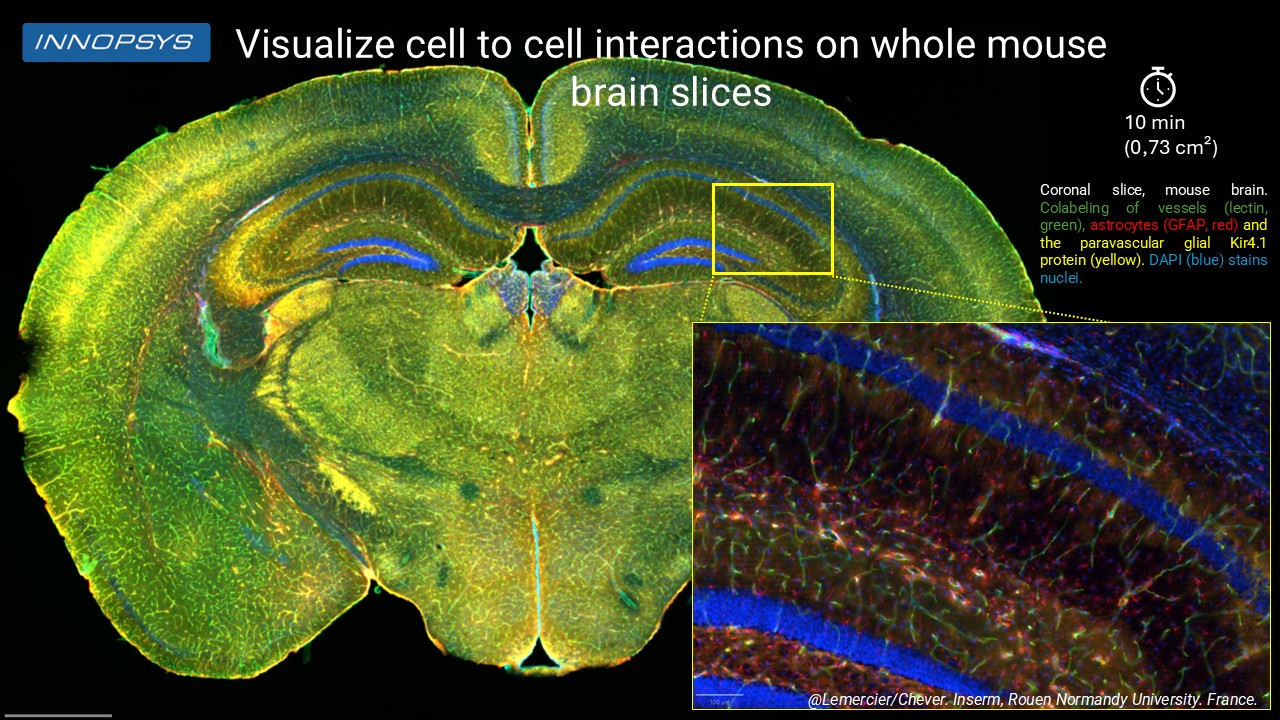

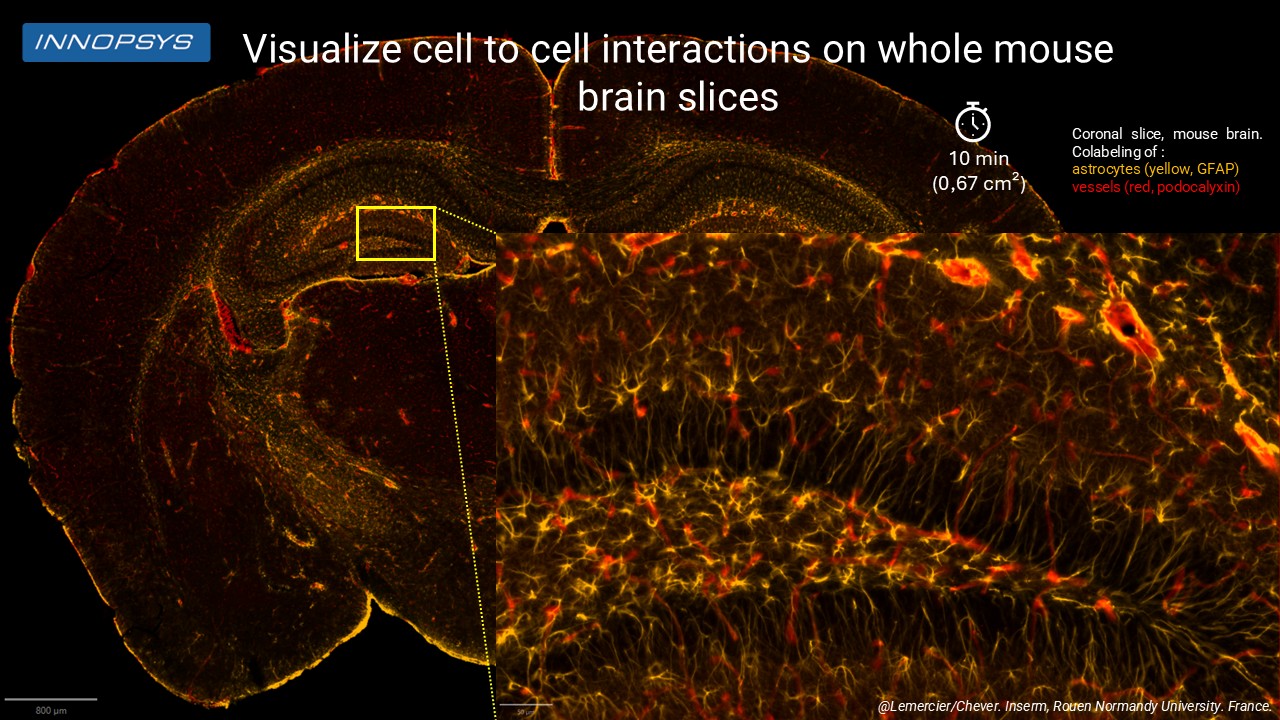

Experience the power of single-pass, 4-channel fluorescence detection: Explore real results with our interactive visualizer
Discover how InnoQuant fluorescence slide scanner captures high-resolution, multiplexed tissue data in just one scan.
What users say about the InnoQuant Fluorescence slide scanner
A core facility focusing on whole-slide tissue imaging
“Our Core is helping many researchers with whole slide immunofluorescent images within and outside of University of Colorado. Main challenge is time, needed for big tissue scans and photobleaching. InnoQuant solves both problems very elegantly. Additionally, interface is user friendly and doesn’t take a lot of time to start.”
Remedy Bio, a biotech company working on immune oncology treatment
“Based in Dublin, RemedyBio is a nanoscale biotechnology company pioneering ultra-high throughput therapeutic discovery. We use the Innopsys technology to scan millions of cells in our custom arrays to map cellular function directly from patient samples with significantly reduced scanning time and high resolution. The InnoQuant versatility allowed an instrument custom-made optimization to accommodate nonstandard slides without compromising quality.”
